Built for transformation, our shape memory Nitinol offers repeatable, reliable performance where precision matters most. Categorized as warmer grades of Nitinol, shape memory is more appropriate for use in high-temperature industrial applications. Shape memory grades are also widely used in Nitinol actuators.
Shape memory isn't limited to use in industrial applications. Designs often leverage phase transformation at body temperature (37°C [98.6°F]), making shape memory Nitinol useful for medical devices.
Shape memory grades
NiTi #5 and #6 are commonly used in high temperature actuators, including locking/latching systems and vents/valves.
NiTi #8 is typically used in applications that require a phase transformation at body temperature.
All binary Nitinol grades meet the chemistry requirements set forth by ASTM F2063 for use in surgical implants.
Nitinol products and solutions
Our range of customizable Nitinol products, from flat wire to complex custom shapes, can help advance your cutting-edge projects. And with advanced capabilities we're equipped to deliver precision-engineered solutions for the most demanding applications. Partner with us to explore the full potential of Nitinol for your applications.
Mechanical properties
The possibilities for Nitinol feel practically endless. You can use the following information to learn more about shape memory Nitinol, and the markets we serve.
|
Product |
NiTi #5 | NiTi #6 | NiTi #8 |

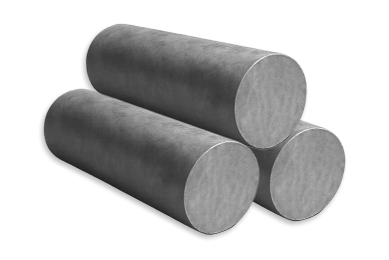

| Ingot Aₛ |
≥ 85 °C |
35 °C to 85 °C [95 °F to 185 °F] |
10 °C to 35 °C [50 °F to 95 °F] |
| Cold worked (i.e. Hard, as drawn) | |||
| UTS |
1310 MPa |
1310 MPa [190 ksi] |
1517 MPa [220 ksi] |
|
Elongation |
> 3% |
> 3% | > 3% |
|
Shape memory (i.e. Straight annealed) |
|||
| UTS |
1069 MPA |
1069 MPa [155 ksi] |
1103 MPa [160 ksi] |
| Elongation |
> 10% |
> 10% | > 10% |
| Active Aᶠ |
≥ 85 °C |
40 °C to 80 °C [104 °F to 176 °F] |
22 °C to 40 °C [71.6 °F to 104 °F] |
| Notes |
All mechanical testing conducted at 22 °C ± 2 °C [71.6 °F ± 3.6 °F]. Please note that a correlation study may be required to switch test methods on an existing part. |
||
The markets we serve
While serving medical markets is our bread and butter, we have increasingly applied our Nitinol knowledge to support medical and non-medical applications.
